Tank water level sensor
Product Description

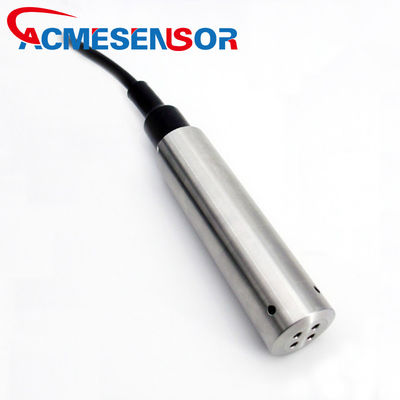

APT300B level transmitter has the special structure and applications. It has high accuracy, small volume,stability,plus resistance to abrasion,oil,acid&alkali and high intensity gas lead cable ensured that it can meet the different occasions measurement requirements. It is widely used in sewage, river and lakes treatment as well as channel, large rivers, l reservoirs and coastline monitoring.This product has got intrinsic safety certification,explosion proof certification and CE certification.The lead of two-wire circumfluent is no-polarity.
Application of level sensor
Specification
|
Parameter |
Data |
||||||
|---|---|---|---|---|---|---|---|
|
Pressure Range |
0~0.01....10MPa / 0-0.5M.......500mH2O |
||||||
|
Pressure type |
gauge (G), absolute (A) |
||||||
|
Overpressure |
200%FS |
||||||
|
Burst pressure
|
300%FS
|
||||||
|
Electronic Wire
|
2 Wires
|
3 Wires
|
|||||
|
Output signal
|
4~20mA
|
0~5VDC
|
1~5VDC
|
0~10VDC
|
0.5~4.5VDC
|
0.5~4.5 V radio metric
|
RS485 Modbus RTU
|
|
Power Supply
|
12 ~ 30VDC, typical value: 24VDC
|
10~30 VDC
|
10~30VDC
|
12~30VDC
|
5 V DC
|
5 V DC±5%
|
10-30VDC╱
3-5VDC |
|
Accuracy
|
≤0.1%FS ≤0.15% ≤0.2%FS ≤0.25%FS(typ.) ≤0.5%FS(max.)
|
||||||
|
stability
|
≤0.2%FS/year
|
||||||
|
Working Temp
|
−25℃~85℃ −40℃~100℃(Customized)
|
||||||
|
Storage Temp
|
−40℃~125℃
|
||||||
|
Temperature Compensation
|
-10℃~80℃ (Standard)
|
||||||
|
Temp.coefficient of zero
|
±0.1%FS/°C
|
||||||
|
Temp.coefficient of span
|
±0.05%FS/°C
|
||||||
|
Insulating resistance
|
100MΩ@250VDC
|
||||||
|
Medium compatible
|
Water or Compatible with 316L Stainless Steel
|
||||||
|
Short circuit protected
|
Yes
|
||||||
|
Reverse polarity protection
|
Yes
|
||||||
|
Electronic connection
|
Fixed cable and water proof IP68
|
||||||
|
Pressure interface
|
Gage pressure; Sealed gage and absolute opional
|
||||||
|
Material of pressure membrane
|
316L stainless steel
|
||||||
|
Response time(10%~90%)
|
≤10msec(Rises to 90%FS)
|
||||||
|
Vibration Shock
|
10g/5~2kHz,axes X/Y/Z/20g half sine 11ms
|
||||||
|
Water Proof
|
IP68
|
||||||
|
Cable optional
|
PE cable( Water proof ); PUR cable( Oil Proof ); PTFE Cable( Anti-Corrosive)
|
||||||
|
Certificate approving
|
CE Certificate available.
|
||||||
|
EMC Standard
|
EN 61326-1:2013; EN 61326-2-3:2013 EN 61000-6-2:2005; EN61000-6-4:2007+A1
|
||||||
|
Weight
|
Net weight is about 0.35KG, Full Packing weight is about 1.0KG (Included 2 Meters Cable)
|
||||||
