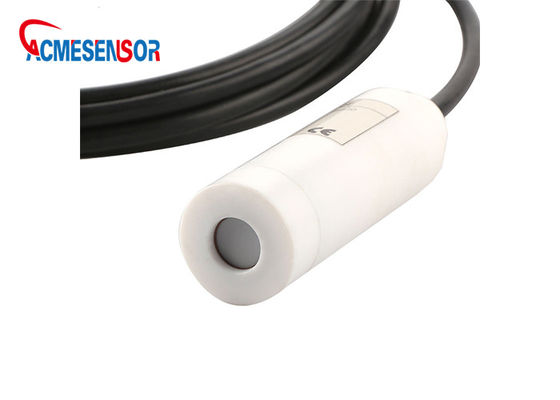

Capacitive Water level Sensor for Chemical Industry
1 Unit
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Certification: CE
Model Number: APT302
Payment & Shipping Terms
Packaging Details: standard export packing: PE bag and carton
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 Unit/Units per Month
Warranty:: 1 Year
Customized Support:: OEM, ODM, OBM
Measurement Range:: 1~200m H2O
Accurancy:: 0.5% F.S
Output Signal:: 4~20mA 0~5Vdc 1~5Vdc 0~10Vdc
Power Supply:: 10~30Vdc 8~30Vdc 8~30Vdc 12~30Vdc
Product:: Ceramic Capacitive Water Level Sensor For Chemical Industry
Electrical Connection:: Waterproof Outgoing Line
Pressure Interface:: Embedded Type
Material Of Pressure Membrane:: 316LSS
Material Of Housing:: 1Cr18Ni9Ti Stainless Steel
Protection:: IP68
Certification:: CE, RoHs
Product Description

Introduction of Water level sensor

APT302 level sensor uses ceramic core as the sensitive element. It is high reliability high stability high accuracy Level or pressure is mainly used to measure the corrosive liquid level and gas.

♦The product uses a titanium alloy PTFE shell, ceramic core adopt programmable transmitter conversion circuit and can facilitate the calibration of zero and full scale Resistance to abrasion,oil,acid & alkali and high intensity gas lead cable can be selected for customer s need.




Name APT302
Measurement Range 0...1…200mH2O
Overload pressure 2 times rated pressure
Failure pressure 4 times rated pressure
Accuracy ±0.1%F.S, ±0.25%F.S
Stability Standard: 0.1%F.S±0.05%
Working Temp -20℃~80℃
Compensation temperature 0℃~70℃
Medium compatibility Compatible with 316L Stainless Steel or Titanium Alloy or PTFE materiel
Electrics feature Two-wire type Three-wire type
Signal output 4~20mA 0.5~4.5V 0-5V, 1~5 V
Power supply 12~36 V DC 5V DC 12~36 V DC
Temperature output 4~20mA or resistance signal; Range: -10…100 degree C
Insulate resistance >100MΩ @500V dc
Electrics connector Fixed cable and water proof IP68
Resolution Infinite small (theories), 1/100000 (usually)
Response time ≤10 ms (standard); ≤1 ms (Customized)
Pressure form Gauge pressure: G, Absolute pressure: A
Certification Explosion proof certification, CE certification. Rosh certification


Capacitive Water level Sensor for Chemical Industry 0

Capacitive Water level Sensor for Chemical Industry 1

Capacitive Water level Sensor for Chemical Industry 2

Capacitive Water level Sensor for Chemical Industry 3Capacitive Water level Sensor for Chemical Industry 4Capacitive Water level Sensor for Chemical Industry 5


Q: How can I get the quotation?

A: Send your inquiry to us by the inquiry from on the right-side or the bottom of this page.

Q:Can you accept ODM & OEM service ?

A:We professional provide OEM &ODM service for all of our products.

Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q:How about the quality of the magnets?
A:We have the certification of ISO,CE and ROSH,we could send the certification test of our company to you.

Q:How is the price?
A:As we believe the quality is the most important,we will provide the best quality pressure sensor we can with reasonable price.
Q:Could you provide me the shortest lead time?
A:We have materials in our stock,if you really need,you can tell us and we will try our best to satisfy you.
Q:Could I visit your factory?
A:Of course,if you need we will help you to visit our factory.

Q. How can I get my sensors?/ What's the means of transport?

A. We main delivery goods by express: DHL, FedEx, UPS,TNT, etc or logistics by indicator
