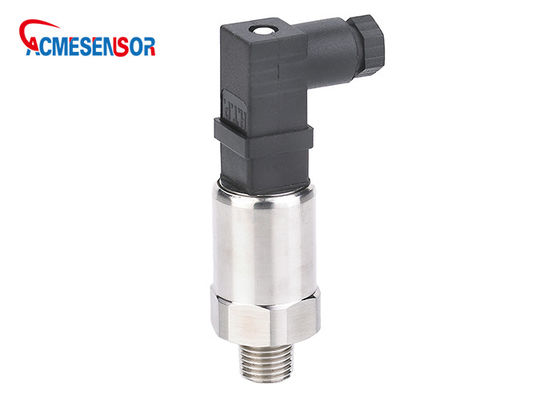

R410a R22 Air Compressor Pressure Transducer R134a R404a Oil Pressure Sensor
1 Piece
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Certification: CE
Model Number: APT210
High Light:

R410a R22 Air Compressor Pressure Transducer


R134a Oil Pressure Sensor


R404a Oil Pressure Sensor

Payment & Shipping Terms
Packaging Details: Standard Carton or Wooden carton for OEM APT210 RS485 4-20mA ceramic pressure sensor i2c
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 pieces per month
Pressure Range::: -0.1...0~0.01...100MPa
Pressure Type::: Gauge (G), Absolute (A), Sealed Gauge (S)
Output Signal::: 0-5V,0.5-4.5V,0-10V,4-20mA,0-20mA
Power Supply::: 12 ~ 30VDC Typical Value: 24VDC
Accuracy::: 0.25%FS(typ.) 0.5%FS(max.)
Working Temp::: -25℃~85℃
Electronic Connection::: Packard 3 Pin Connector,Hirschman,
Pressure Interface::: M20x1.5, 1/8''NPT, 1/4''NPT, G1/4'', 7/16''-20 UNF(by Customized)
Material Of Pressure Membrane::: 316L Stainless Steel
EMC Standard::: EN 61326-1; EN 61326-2-3:2013 EN 61000-6-2:2005; EN61000-6-4:2007+A1
Product Description

Cheap Air Compressor Pressure Transducer for R410a,R22,R134a,R404a APT210/Oil Pressure Sensor

Product Description

APT210 pressure transmitter use the Germany Ceramic sensors or diffuse silicon oil-filled sensors body as the sensitive element, built-in processing circuit to change sensors millivolt signal to standard output voltage or current signals, can be directly with the computer, control instrument and display instrument, etc. Select the high stability, high reliability of piezoresistive pressure sensor and high-performance dedicated circuit in the transmitter, the overall performance is stable and reliable, long distance signal transmission can be performed. Adopts the integration of the full stainless steel structure, after lots of stainless steel welding to reach the solid-state design, easy installation, with the characteristics of high vibration resistance and impact resistance, can be use in the bad environment for a long time.


R410a R22 Air Compressor Pressure Transducer R134a R404a Oil Pressure Sensor 0

Size Information


R410a R22 Air Compressor Pressure Transducer R134a R404a Oil Pressure Sensor 1

Electrionic Connections

OUTPUT=Signal, VCC=Power Supply, GND=VCC-&S,Sheild=Earth

R410a R22 Air Compressor Pressure Transducer R134a R404a Oil Pressure Sensor 2

Manufacture Specification

Ambient Temperature: 25°C (unless specified)



Pressure Range


Pressure type

gauge (G), absolute (A), sealed gauge (S)



Burst pressure


Electronic Wire

2 Wires

3 Wires

Output signal






0.5~4.5 V radio metric

Power Supply

12 ~ 30VDC, typical value: 24VDC

10~30 V DC



5 V DC

5 V DC±5%

(including: nonlinearity, repeatability, hysteresis, zero drift, full drift)

0.25%FS(typ.) 0.5%FS(max.)

Long-term stability


Working Temp


Storage Temp


Temperature Compensation

-10℃~80℃ (Standard)

Temp.coefficient of zero


Temp.coefficient of span


Insulating resistance


Medium compatible

Water, gas and weakly corrosive fluids

Short circuit protected


Reverse polarity protection


Electronic connection

Packard 3 Pin Connector;
Smaller Hirschman Terminal Box IP65;
Packard 3 Pin Connector with cable length by Customized.

Pressure interface

M20x1.5, 1/8’’NPT male, 1/4’’NPT male/Female, G1/4’’ male/female, 7/16’’-20 UNF male/Female (by Customized)

Material of pressure membrane

316L stainless steel

Response time(10%~90%)

≤10msec(Rises to 90%FS)

Vibration Shock

10g/5~2kHz,axes X/Y/Z/20g half sine 11ms

Water Proof


Certificate approving

CE Certificate available.

EMC Standard

EN 61326-1:2013; EN 61326-2-3:2013 EN 61000-6-2:2005; EN61000-6-4:2007+A1


Net weight is about 0.1KG, Full Packing weight is about 0.2KG (Included 2 Meters Cable)



Schematic diagram of common installation method

R410a R22 Air Compressor Pressure Transducer R134a R404a Oil Pressure Sensor 3
R410a R22 Air Compressor Pressure Transducer R134a R404a Oil Pressure Sensor 4

Our Services & Strength


1.The measuring medium must be compatible with 304 stainless steel and nitrile rubber.

2.If possible, the electrical connection of the pressure transmitter should be as vertical as possible. Measurement of dry gas pressure except indoors and in dry conditions;

3.When the pressure vessel being measured has a water or Air Hammer, a buffer valve must be installed at the front of the pressure transmitter interface.

4.When used to measure the pressure of the outlet of a pressure pump, a buffer valve or a buffer bend must be added at the front end of the pressure transmitter.

5.When a pressure transmitter is installed in the pipeline, the first step is to clean up the liquid at the threaded port and install the pressure transmitter. The second step is to slowly open the valve after installation to prevent pressure impact.

6.When a pressure transmitter is mounted on a turn pipe, it should be at least 9 times the diameter of the pipe at the turn and preferably downstream of the turn flow.

7.When a motor is present in the measuring system, ensure that the motor housing and the housing of the power supply for the pressure transmitter are at the same potential and that the resistance between the housing and the Earth does not exceed 9;

8.When there is a transducer in the measuring system, the shell of the motor controlled by the transducer should be connected to the ground wire of the power supply of the pressure transmitter.

9.When the pressure hole of the pressure transmitter is blocked, it is forbidden to use the sharp device to dredge the pressure hole. 10.The pressure transmitter should be dismounted and the part of the pressure hole should be immersed into the liquid that can dissolve the blocked material. If the user needs to calibrate zero or calibration full range should be under the guidance of our technical people, do not open the transmitter to adjust;

11.The pressure transmitter should be installed in a position that is not vulnerable to collision and trampling;

12.Transmission Cables for pressure transmitters shall not be placed in the same threading tube or in the same wiring groove as other high-voltage or high-voltage cables;

13.When installing pressure transmitters in the Dorey area, be sure to install lightning protection devices and ensure that the pressure transmitters and power supply are reliably connected to the ear;




Q:Can you accept ODM & OEM service ?
A:We professional provide OEM &ODM service for all of items.
Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q:How about the quality of the magnets?
A:We have the certification of ISO,CE and ROSH,we could send the certification test of our company to you.
Q:How is the price?
A:As we believe the quality is the most important,we will provide the best quality ultrasonic level sensor we can with reasonable
Q:Could you provide me the shortest lead time?
A:We have materials in our stock,if you really need,you can tell us and we will try our best to satisfy you.
Q: How can I get my sensors?/ What's the means of transport?
A. We main delivery goods by express: DHL, FedEx, UPS,TNT, etc or logistics by indicator
Q. How to order ?
A. In order to recommend you the most suitable radar level sensors and make an accurate quotation, please provide the following information and send it to our sales when you are going to make an inquiry, thanks !
1. What is your medium? Water, oil or others?
2. Level range: 0-10meters, or others?
3. Output signal: 4-20mA, RS485 or others?
