OEM APT211 200C high temperature oil pressure sensor/250C high temp pressure sensor for steam pressure measuring
APT211 200C high temperature oil pressure sensor
APT211 200C high temperature oil pressure sensor is suited for media temperatures up to 200°C. The pressure acted on diaphragm is transmitted onto imported silicon or sapphire sensing die through the radiating fin. The radiating fin could decrease high media temperature to close to environment temperature by the airs heat dissipation function. This design not only do not need additional cooling devices (e.g. water cooling device), but also able to make full use of performance advantages of Piezo-resistive pressure sensor. The integrated high precise PCB amplifies sensor signal into voltage or current signal related to pressure proportionally. The whole transmitter is full welded construction, IP65 protection and good .
Specification of high temperature oil pressure sensor:
|
Model: |
HPT200-HT 200C high temperature oil pressure sensor |
||||
|
Pressure Range: |
-1-0-1 Bar.....2000 Bar Optional |
||||
|
Pressure Type: |
Gauge pressure; Absolute pressure; Sealed gauge pressure optional. |
||||
|
Accuracy: |
≤ ±1%F.S |
||||
|
|
≤ ±0.5%F.S |
||||
|
Working Temperature Span: |
-10℃-125℃ (A type) OR -60℃~200℃ (B type) |
||||
|
Ambient Temp: |
0-85℃ (A type) Or -20℃~100℃ (B type) |
||||
|
Cooling device: |
With cooling device for max 125 ℃; With cooling device for max 200 ℃ optional |
||||
|
Storage Temp: |
-20℃~125℃ |
||||
|
Temperature Compensation: |
0-85 degree C (A type) OR 0℃~100℃(B type) |
||||
|
Medium compatible: |
Compatible with 316L Stainless Steel or 1Cr18Ni9Ti stainless steel |
||||
|
Electronic Wire: |
2 Wires |
3/4 Wires |
|||
|
Output: |
4~20mA |
0~10mA |
0~5V |
1~5V |
0.5~4.5V Ratiometric |
|
Power Supply: |
12~36 V DC |
12~36V DC |
12~36 V DC |
12~36 V DC |
5Vdc |
|
Electronic connection: |
DIN Hirschman Terminal Box4 Pins and IP65. |
||||
|
Directly 2 meters cable IP67 optional. |
|||||
|
Cable length: |
2 meters or By customized. |
||||
|
Pressure process connection: |
G1/4’’male, 1/4’‘NPT male, 1/2’‘NPT Female |
||||
|
G1/2’’; G3/4’’male optional. (by customized) |
|||||
|
Water Proof: |
IP65 |
||||
|
Response time: |
≤1ms |
||||

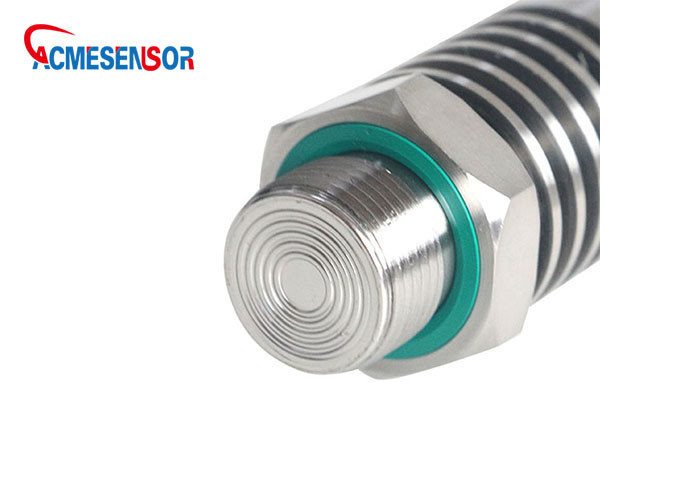

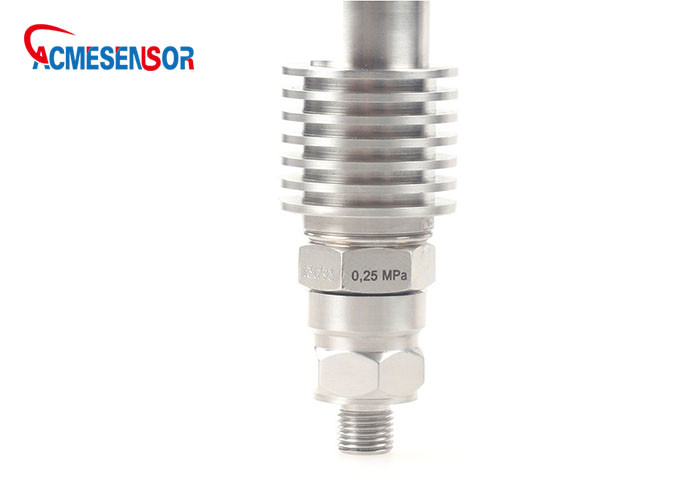

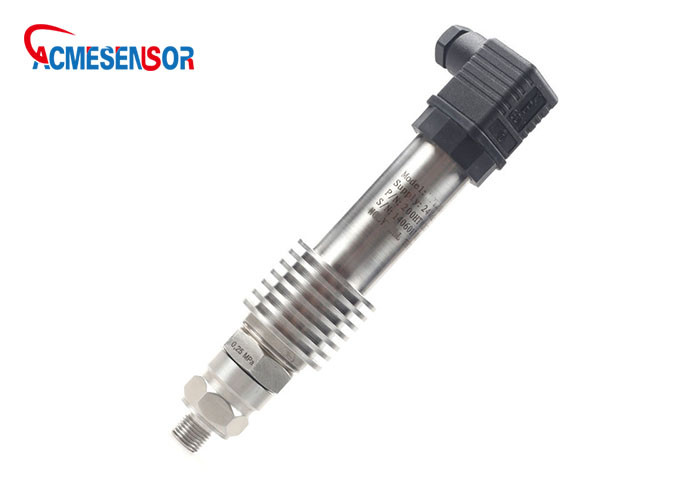

Details of high temperature oil pressure sensor:
APT211 pressure sensor order guide:
In order to recommend you the most suitable sensor , please show us following necessary info according to your practical situation.
1.What is your medium ? Water, or other.
2.Working temperature ? -30°C~85°C or other
3.Pressure range ? 0~100bar or other
4.Output signal? 4-20mA, 0-5V or other
5.Electronic connection ? Fixed Cable, Sealed screw by order
