Products Description
New design fuel tank ultrasonic water liquid sensor wifi for river/sea level monitoring

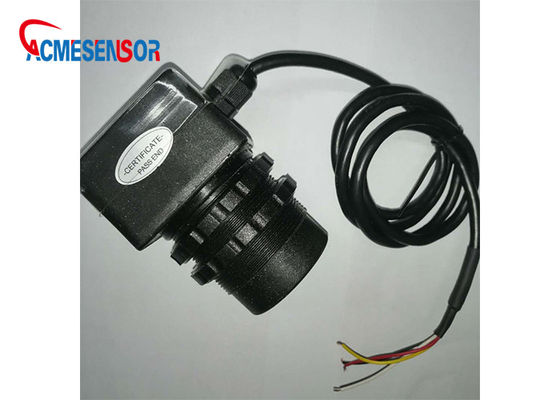

AUT701 Waterproof Ultrasonic Level Sensor
Characters:
* Accuracy: ≤±0.5%F.S.
* High stability and reliability
* Precise linear and temperature compensation
* ZERO and SPAN calibrate available
* Explore structure and design
* Smaller blind zone
* All English menu and operate
* Safety, Aesthetics, High degree of protection
* Applicable for various liquids, powder and solid
* Low failure rate, easy to install, easy to maintain
Applications:
* Water tank level measurement
* Food tank level measurement
* Seal water level measurement
* Powder and Solid level application
* Sewage and industry wastewater treatment
* Oil and Fuel level measurement
* Hazardous zone level measurement
* Oil tanker, small fuel tank level measurement
* Other distance and level application
SPECIFICATION
|
Item
|
Specification
|
|
range
|
≤15m
|
|
Blind
|
≤300~350mm(according to sensor can Customize:200mm,100mm)
|
|
Accuracy
|
±0.5%F·S(Customized:0.25% F·S)
|
|
Output signal
|
4~20mA three wire system,4~20mA four wire system,1~5V,RS485,RS232,
1~10V or others |
|
Beam angle
|
15°,12°(according to sensor can Customize)
|
|
Operating temperature
|
0~50°C(Customize:-10~60°C,-20~70 °C )
|
|
Power Supply
|
DC24V/300mA or DC12V/300mA
|
|
Cable way
|
Water proof connector ,down-lead 0.5m
|
|
Defend grade
|
IP65(Customized:IP66,IP67)
|
|
Mounting model
|
screw, or sifter clamping
Thread size:M49×1.5mm |
|
Application environment
|
normal pressures,non-explosion-proof,non- corrosive environment
Customize:PDF BOOK,anti-explosion symbol ExiaⅡ AT3 |
Characteristic of AUT700 Series Level Sensor
|
1
|
Support M49*1.5 mm threaded into type installation and coil clamping type installation,
the installation more convenient |
|||
|
2
|
Many model output optional customizable 4-20ma three-wire system, 1-5v, RS485 more customizable
|
|||
|
3
|
Less than 9°C Beam angle design ,Resolution 3mm, less than 200ms responsible time to make sure more accuracy
|
|||
|
4
|
Wide range of application,Sealed high-temperature toxic volatile,flammable and explosive of strongly corrosive liquid medium level
measurement of non-contact ultrasonic sensors |
|||
|
5
|
Multiple electrical connection are optional ,easy installation
|
|||
|
7
|
Housing adopts the NLEPE synthetic material
IP66 waterproof,Anti-Skid,Anti-corrosion,Anti-explosion structure |
|||
|
8
|
More Human More Convenient,NON-Contact Type,more cleaning and health
M78*1.2mm Thread or coil clamping installed |
|||
|
9
|
EMI/RFI Rejection
|
|||
Application
Company Profile
Xi'an Acme M&C Co., Ltd is a high-tech company integrating R&D, production and distribution.
The company has a purification plant of 5000m2, an annual output of 1 million production line of pressure sensor, transmitter and intelligent digital instrumentation.
Now the company has more than 120,000 customers worldwide, the products have been exported to Europe, America, Australia, Africa, southeast Asia, 109 countries.
Xi'an Acme M&C Co., Ltd can provide a cost effective solution for pressure monitoring for a variety of applications.
FAQ
1:How long will you give me the reply?
we will contact you in 2 hours as soon as we can.
2:Could I get samples?
Yes,we have materials in stock to help you to get the samples as soon as we can.
3:How about the quality of the magnets?
We have the certification of ISO,CE and ROSH,we could send the certification test of our company to you.
4:How is the price?
As we believe the quality is the most important,we will provide the best quality pressure sensor we can with reasonable price.
5:Could you provide me the shortest lead time?
We have materials in our stock,if you really need,you can tell us and we will try our best to satisfy you.
6:Could I visit your factory?
Of course,if you need we will help you to visit our factory.
7:If I have paid,when will you help me to produce?
When we have received the money in our account,we will give you the receipt and arrange to produce immediately.
